1x32 1x64 1x128 rack-mounted optical switch

Class:
Optical Switch Module
Type:
1x32 1x64 1x128 rack-mounted optical switch module

1x32 1x64 1x128 rack-mounted optical switch

1n to 1x128 rack-mounted optical switch is a kind of optical path control device which has the function of optical path control and switch. it can choose working optical path switch manually with button and also control optical path switch or scan in frequency the optical switch which need to be monitored with rs 232 port and ethernet port.


features
low loss, high reliability, high stability
lcd display
rs232 and ethernet interface

applications
ring network
testing of fiber, optical component
optical network auto-monitor


performances



parameters



optic-switch-fsw-1n to 1x128-u

wavelength range

db

1<n12

16<n32

32<n64

64<n128

typ:0.8  max:1.0

typ:1.0  max:1.2

typ:1.4  max:1.6

typ:1.9  max:2.2

operating wavelength

nm

532~980

1260~1650

insertion loss

db

650/780/850/980

1310/1490/1550/1625

return loss

db

sm50mm30

crosstalk

db

sm55mm35

pdl

db

0.05

wdl

db

0.25

tdl

db

0.25

repeatability

db

ܡ0.02

lifetime

times

107

transmission power

mw

500

switch time

ms

10

operating temperature

c

-20+70

storage temperature

c

-40+85

power supply

v

ac 85-264v,50/60hz   or    dc(36-72)v

dimensions

mm

1u l303w439h44 (up to 16 channel) customization is available.

  2u l303w434h89 (up to 130 channel) customization is available.

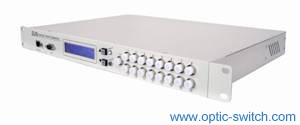

 product image

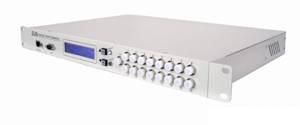

                      1xn rack-mounted optical switch

ordering information optic-switch-fsw-1n-a-b-c-d-e-f

n

a

b

c

d

e

f

channel

package spec

mode

wavelength

voltage type

fiber type

connector

1~128

1u

2u

3u

4u

s:sm

m:mm

85: 850nm

13: 1310nm

14: 1490nm

15: 1550nm

162: 1625nm

165: 1650nm

13/15:1310/1550nm

x: other

ac: 85-264v

dc: 36-72v

ac/ dc:

220v48v

5:50/1256:62.5/125

9: 9/125

x: other



inner fiber type

fp: fc/pc

fa: fc/apc

sp: sc/pc

sa: sc/apc

sp: st/pc

sa: st/apc

lp: lc/pc

la: lc/apc

x: other
